Descripción

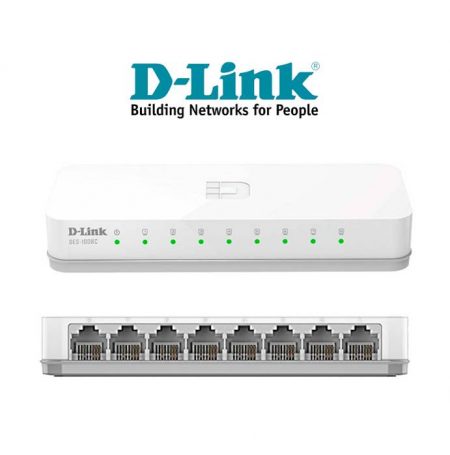

8 Puertos Fast ethernet auto sensing

Este switch provee 8 puertas con soporte Nway. Las puertas tienen la capacidad de negociar las velocidades de red entre 10BASE-T y 100BASE-TX, como también el modo de operación en Half o Full Dúplex

Especificaciones técnicas

General

Device Interfaces

• Eight 10/100 Fast Ethernet LAN ports

Functionality

Advanced Features

• Green Ethernet
  • 1.6 Gbps switching fabric
  • Auto MDI/MDIX crossover for all ports
  • Secure store-and-forward switching scheme
  • Compliance with IEEE802.3az EEE power saving
• Full/half-duplex for Ethernet/Fast Ethernet speeds
  • IEEE 802.3x Flow Control
  • Plug-and-play installation
  • RoHS compliant
  • Supports 2048-byte Jumbo Frames

Protocol

• CSMA/CD

Data Transfer Rates

• Ethernet:
  • 10 Mbps (half duplex)
  • 20 Mbps (full duplex)
• Fast Ethernet:
  • 100 Mbps (half duplex)
  • 200 Mbps (full duplex)

Transmission Method

• Store-and-forward

MAC Address Table

• 2K

MAC Address Learning

• Automatic Update

Packet Filtering/Forwarding Rates

• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port

RAM Buffer

• 96 KB per device
